Barnes Chopper Pumps NY


KG Power Systems is the leading distributor for Barnes pumps in the Long Island and NY area.  We specialize in pump sales, pump repairs and pump installations.  Below, we are showcasing Barnes Chopper Pumps due to their high demand in the NY and Long Island area.  Continue below to learn more about Barnes Chopper Pumps or call KG Power Systems today to speak with one of our pump techninicians.

Phone: 631-342-1171 or Email: Sales@kgpowersystems.com

Chopper pumps are designed for high solids handling capabilities. The chopper pump is often used for pumping sewage, sludge, manure slurries, and other liquids that contain large or tough solids. KG Power Systems offers Barnes Sithe Chopper Pump series which has been proven to be the best in the industry. Barnes chopper pumps are designed to solve all clogging problems for even the most demanding of applications.

Submersible chopper pumps designed to chop and macerate solids in extremely challenging waste water applications

Sithe chopper pumps are the solution to prevent pump clogging caused by non-dissolving solids in waste water streams. The chopper pump easily chops and passes wipes, swiffers, plastic bottles, mops shirts, nylons and more.

Sithe chopper pumps will solve clogging problems in the most demanding applications

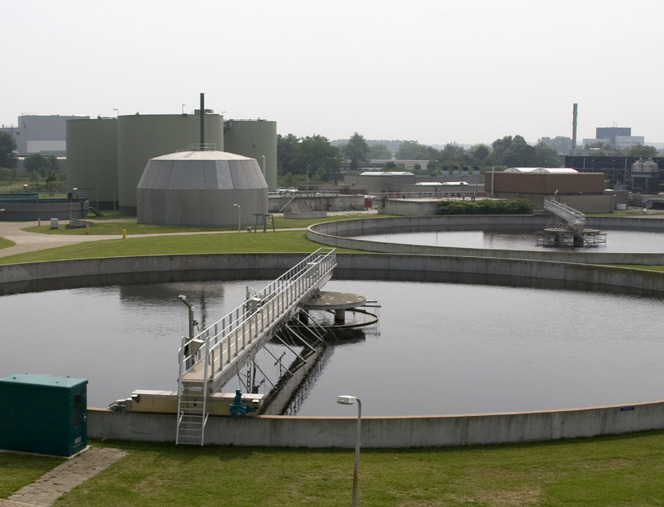

Trailer Parks • Waste Water Treatment Plants • Truck Stops • Correctional Facilities • Retirement Communities • RV Parks

Barnes Chopper Pumps NY Barnes Chopper Pumps NY Barnes Chopper Pumps NY Barnes Chopper Pumps NY Barnes Chopper Pumps NY Barnes Chopper Pumps NY


Additional features for Barnes Sithe Chopper Series:

• Sithe’s patent pending slicing mechanism reduces solids to prevent downstream clogging and blockages in piping, valves and head works

• Sithe’s elegant but rugged design results in industry leading product reliability

• Sithe features easily serviceable blades and plug-n-play “quick connect” cord to simplify and reduce maintenance costs

• Sithe is available in explosion proof models also.

Sithe is the solution to prevent pump clogging caused by non-dissolving solids in waste water streams.

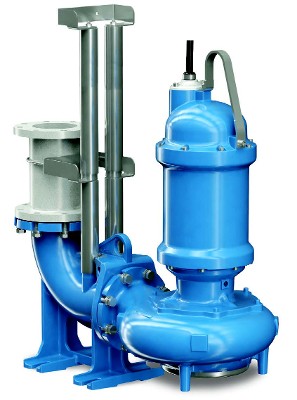

Barnes Sithe Chopper Series

Barnes Chopper Pumps NY


Sithe chopper pumps have valuable features including:


• Plug-n-play “quick connect” cord that simplifies maintenance

• Upgradability with current Barnes submersible solids handling pumps

• Liquid cooled motors that have higher heat dissipation

• Proven Barnes mono vane and dual vane non clog impellers

• Non proprietary double mechanical seals

• Moisture detection sensor

• Robust heavy duty bearings cooled in oil bath

• 8 to 10 year mean time between service calls

• Improved efficiencies compared to vortex impellers, reduced acquisition cost and operating cost

• SITHE provides value to customers in the form of market distinguishing features like open center cutter design, field replacable heat treated blades, plug-n-play cord, liquid cooled motor and large lifting bails. Available in both standard and explosion proof designs, SITHE chopper pumps are offered from 7.5HP to 60HP in 4" and 6" discharge sizes.

Barnes Sithe chopper pumps

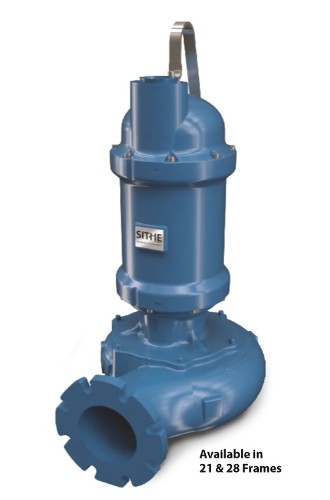

Barnes Submersible Sithe Chopper Pump
Made in the USA

Barnes Sithe Chopper Pumps

Technical Specifications
DISCHARGE 4”, 6”
VOLUTE Cast Iron
STRIKER PLATE 440C SS
MOTOR HOUSING Cast Iron
SEAL PLATE Cast Iron
IMPELLER Mono Vane & Dual Vane
Ductile Iron
SLICING BLADE 440C SS
SHAFT 416 Stainless Steel
HARDWARE 300 Series Stainless Steel
LIFTING BAIL 300 Series Stainless Steel
PAINT Axalta™ Corlar® Epoxy, Two Coats
SEAL Tandem Mechanical,
Oil Filled Resevoir
Motor End: Carbon/Ceramic
Pump End: Silicon Carbide
Cord Plug-n-play
Quick Connect Cord
SPEED 1150 RPM
1750 RPM
UPPER BEARING Single Row, Ball, Oil Lubricated
LOWER BEARING Double Row, Ball, Oil Lubricated
MOTOR Oil-Filled, Squirrel Cage Induction,
Inverter Duty Rated per NEMA MG1
HORSEPOWER 7.5HP to 60HP
MAX HEAD 170ft
MAX FLOW 2500gpm



Submersible chopper pumps are designed to chop and macerate solids in extremely challenging waste water applications

Barnes Sithe Submersible Chopper Pumps

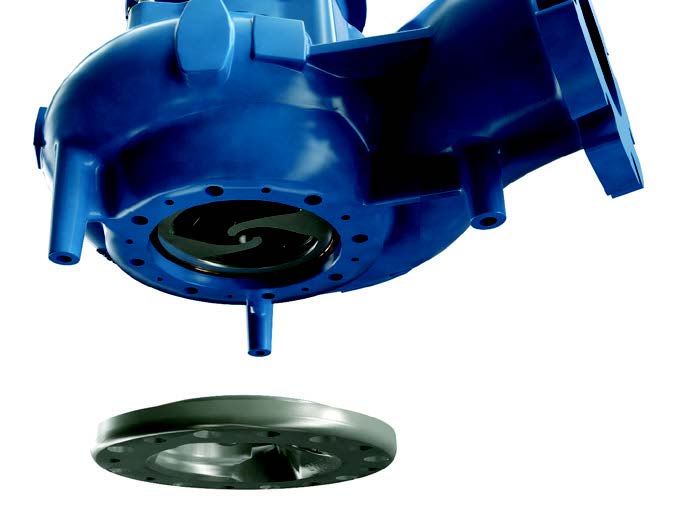

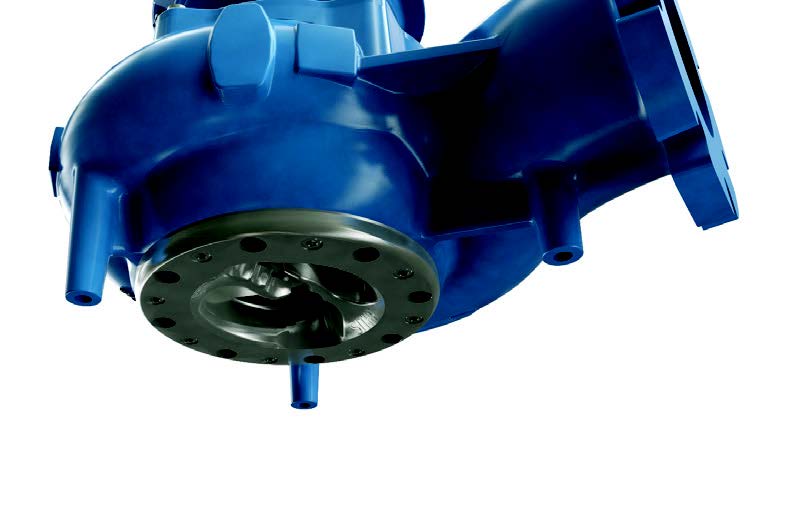

• Patent pending cutting system that uses a “Slicing” action versus harsh chopping reducing stress on shaft and mechanical seals



Crane Pumps & Systems

Barnes Sithe Submersible Chopper Pumps

• 440C Stainless steel heat treated to 53-60 HRC and tempered for toughness

• Open center cutter design prevents material buildup and clogging

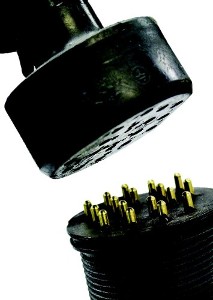

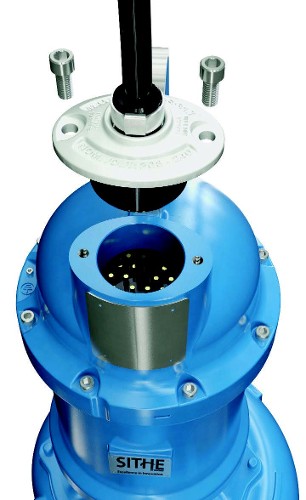

Plug-Play-Cord

“ The detachable cable makes maintenance much easier”
– Jay Roberts, Operator

CRANE / BARNES SITHE CHOPPER SERIES

“ The plug saves you three to four hours pulling the pump!!”
– Carl Harmon, City of Danville

Barnes Sithe Chopper SeriesBARNES SITHE CHOPPER SERIES
